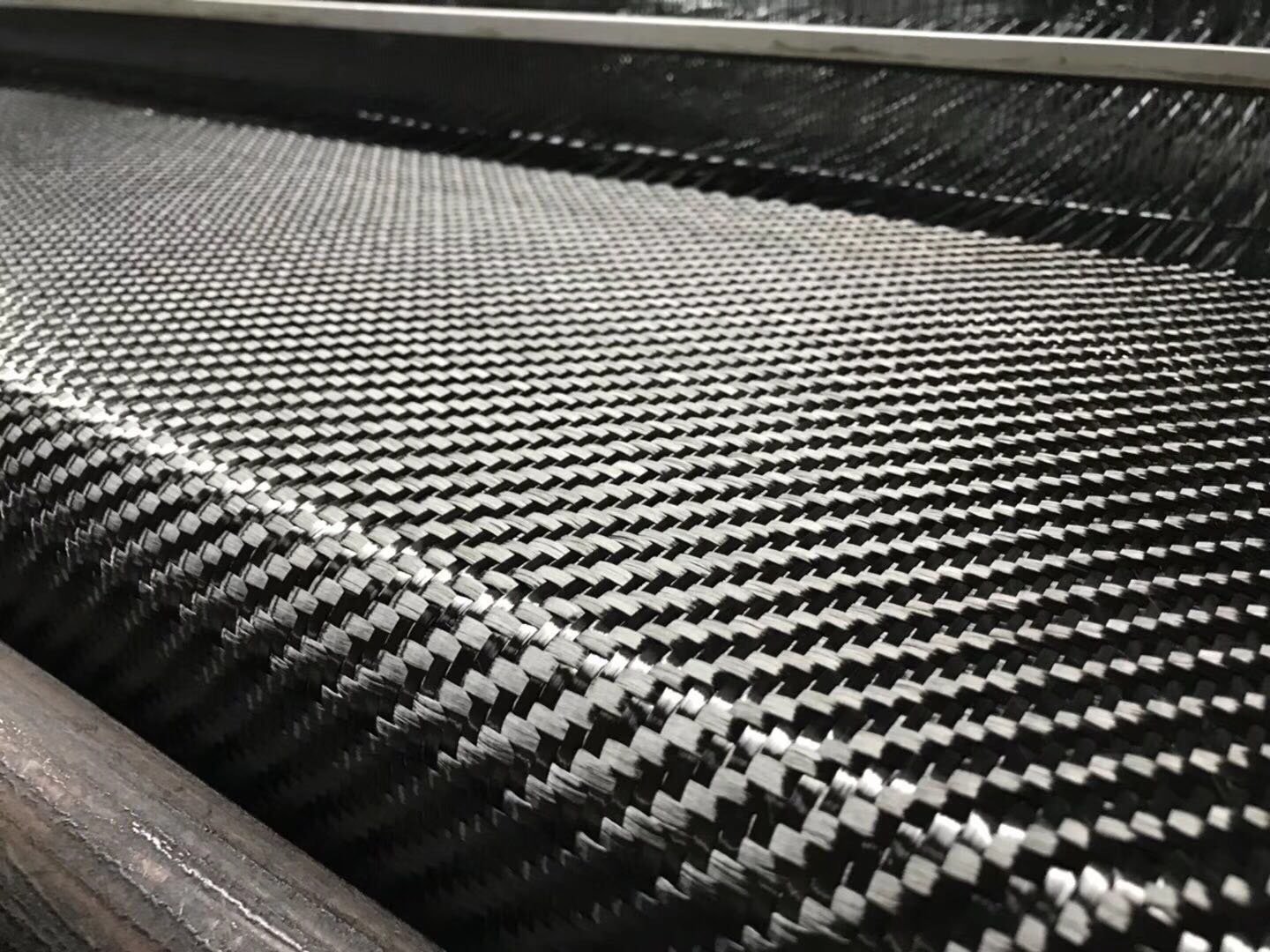

6K 320g Carbon Fiber Fabric

The workhorse of Carbon Fiber, 6K weave is perfectly suited for structural applications due to its resistance to flex, but is light enough to be able to contour to complex shapes and angles.

Product Details

The workhorse of Carbon Fiber, 6K weave is perfectly suited for structural applications due to its resistance to flex, but is light enough to be able to contour to complex shapes and angles.

Carbon Fiber Fabric is made of carbon fiber by woven unidirectional, plain weaving or twill weaving style. The carbon fibers we use contain high strength-to-weight and stiffness-to-weight ratios, carbon fabrics are thermally and electrically conductive and exhibit excellent fatigue resistance. When properly engineered, carbon fabric composites can achieve the strength and stiffness of metals at significant weight savings. Carbon fabrics are compatible with various resin systems including epoxy, polyester and vinyl ester resins.



Bidirectional   Carbon Fiber Fabric

Item   No. Reinforcement YarnWeave
     Pattern
Fiber Count (mm)WeightThickness Width
Warp YarnWelf YarnWarp YarnWelf Yarng/m2(mm)(mm)
PR-1K-CP801k1kPlain66800.08100-1500mm
PR-1K-CP1001k1kPlain7.57.51000.10100-1500mm
PR-1K-CP1201k1kPlain991200.12100-1500mm
PR-1K-CT1201k1kTwill991200.12100-1500mm
PR-1K-CP1401k1kPlain10.510.51400.14100-1500mm
PR-1K-CT1401k1kTwill10.510.51400.14100-1500mm
PR-3K-CP1603k3kPlain441600.16100-1500mm
PR-3K-CT1603k3kTwill441600.16100-1500mm
PR-3K-CP2003k3kPlain552000.20100-1500mm
PR-3K-CT2003k3kTwill552000.20100-1500mm
PR-3K-CP2403k3kPlain662400.24100-1500mm
PR-3K-CT2403k3kTwill662400.24100-1500mm
PR-3K-CP2803k3kPlain772800.28100-1500mm
PR-3K-CT2803k3kTwill772800.28100-1500mm
PR-6K-CP3206k6kPlain443200.32100-1500mm
PR-6K-CT3206k6kTwill443200.32100-1500mm
PR-6K-CP4006k6kPlain554000.40100-1500mm
PR-6K-CT4006k6kTwill554000.40100-1500mm
PR-12K-CP40012k12kPlain2.52.54000.40100-1500mm
PR-12K-CT40012k12kTwill2.52.54000.40100-1500mm
PR-12K-CP48012k12kPlain334800.48100-1500mm
PR-12K-CT48012k12kTwill334800.48100-1500mm
PR-12K-CP56012k12kPlain3.53.55600.56100-1500mm
PR-12K-CT56012k12kTwill3.53.55600.56100-1500mm
PR-12K-CP64012k12kPlain446400.64100-1500mm
PR-12K-CT64012k12kTwill446400.64100-1500mm
PR-12K-CP80012k12kPlain558000.80100-1500mm
PR-12K-CT80012k12kTwill558000.80100-1500mm
