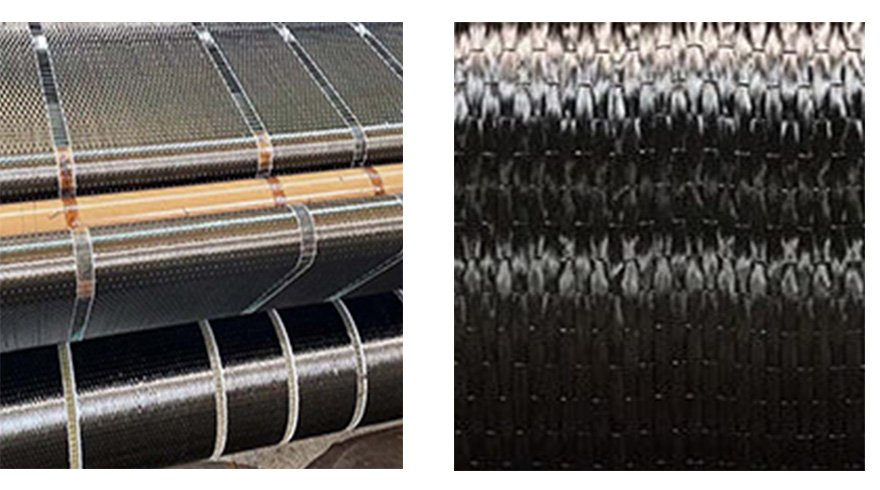

Unidirectional carbon fiber fabric is made from 12K carbon filament with high tensile strength and modulus.
The carbon fabric can be compatible with epoxy, vinyl and most resin. After forming fiber-resin matrix( laminate),
It shows incredible mechanical performance and reinforcing effect on structures.
12K Unidirectional Carbon Fiber Fabric | |||||||
| Item No. | Reinforcement Yarn | Tensile Strength (Mpa) | Modulus (Gpa) | Elogation (%) | Weight | Thickness | Width |
| g/m2 | (mm) | (mm) | |||||
| PR-12K-CU200H | T700S-12K | ≥3400 | ≥240 | ≥1.7 | 200 | 0.111 | 100-1000mm |
| PR-12K-CU300H | T700S-12K | ≥3400 | ≥240 | ≥1.7 | 300 | 0.167 | 100-1000mm |
| PR-12K-CU200 | T300-12K | ≥3000 | ≥210 | ≥1.5 | 200 | 0.111 | 100-1000mm |
| PR-12K-CU300 | T300-12K | ≥3000 | ≥210 | ≥1.5 | 300 | 0.167 | 100-1000mm |
